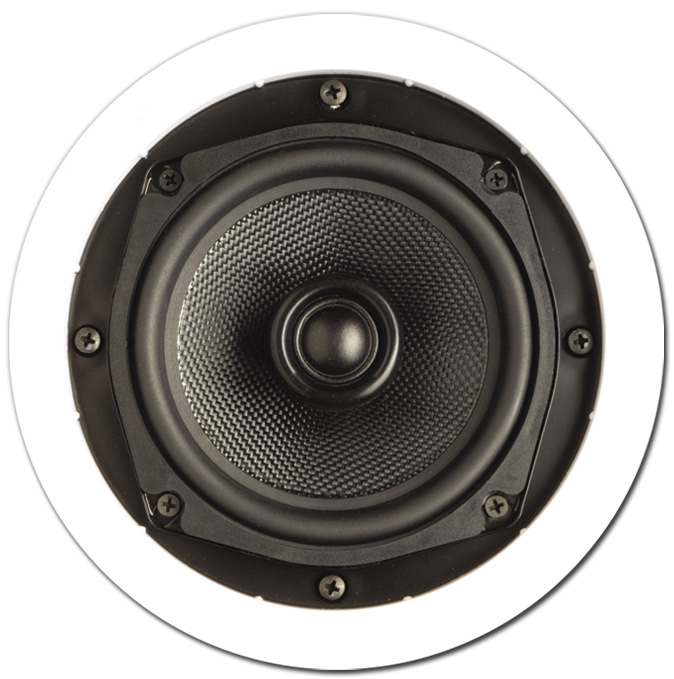

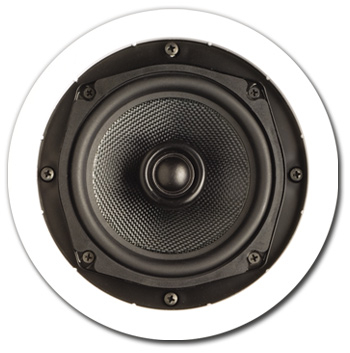

A-505
5-1/4" 2-way round
In-Ceiling Loudspeaker

SPECIFICATIONS
Frequency Response:
50 Hz - 20kHz
Power Handling:
40 watts nom. 80 max
Sensitivity:
91 dB 1 watt / 1 meter
Impedance:
8 ohms nominal
Tweeter:
Silk soft dome pivoting tweeters
Grille:
Perforated Metal Grille
Pre-Construction Bracket
Vapor Dome:
Overall Dimensions:
7-1/2" round
Cut-Out Dimensions:
6-1/2" round x 2-3/8" deep

FEATURES
Kevlar® long throw woofer cones with butyl  rubber surrounds
Kapton voice coil formers
High-grade crossovers
Polyswitch overdrive protection
Proven Mounting System

Compliant

Lifetime Limited Warranty
