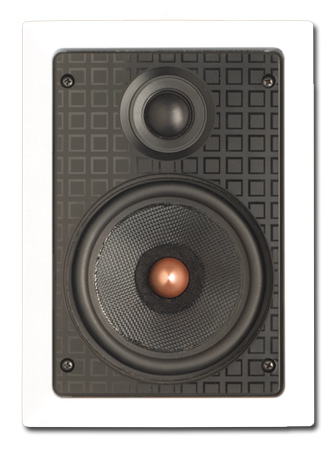

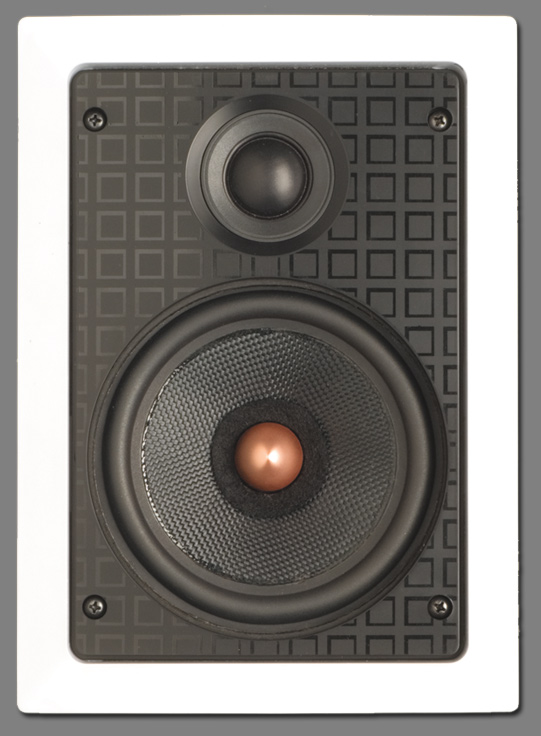

A-525
5-1/4" 2-way rectangular
In-Wall Loudspeaker

SPECIFICATIONS
Frequency Response:
50 Hz - 20kHz
Power Handling:
40 watts nom. 80 max
Sensitivity:
91 dB 1 watt / 1 meter
Impedance:
8 ohms nominal
Tweeter:
Silk soft dome pivoting tweeters

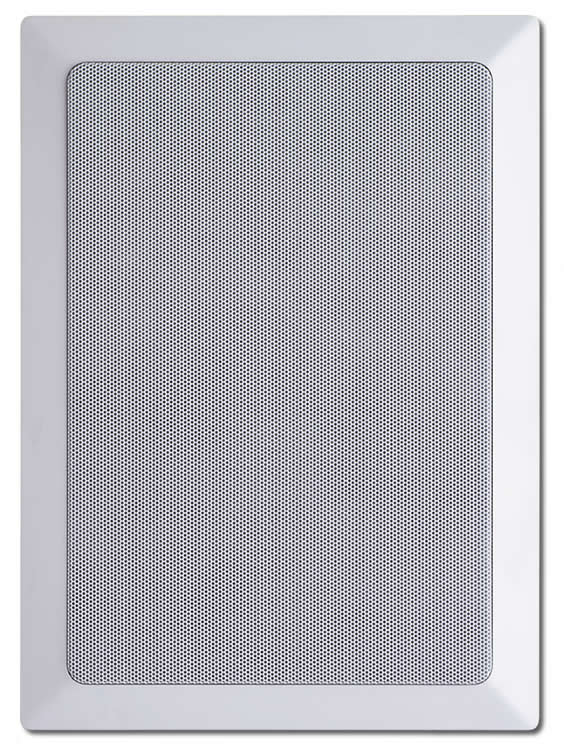

Grille:
Perforated Metal Grille
Pre-Construction Bracket
Overall Dimensions:
6-3/4" W x 9-3/8" H
Cut-Out Dimensions:
5-1/2" W x 8-3/16" H x 2-3/8" deep

FEATURES
Kevlar® long throw woofer cones with butyl  rubber surrounds
Kapton voice coil formers
High-grade crossovers
Phase plug pole piece extensions
Polyswitch overdrive protection
Clamp Ring Mounting System

Compliant

Lifetime Limited Warranty
