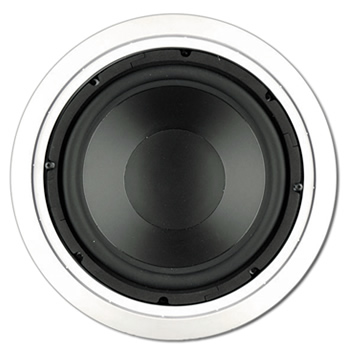

The C-10SW looks identical
to
the A-8LCRS with grille on |

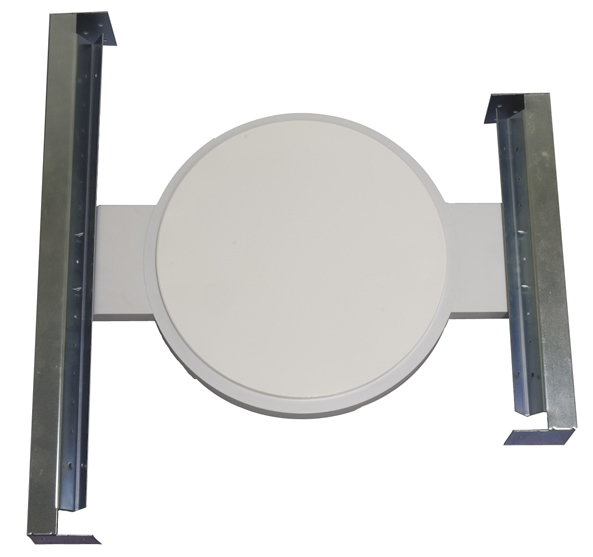

MB-C10 mounting bracket shown with both available rail sizes. |
|

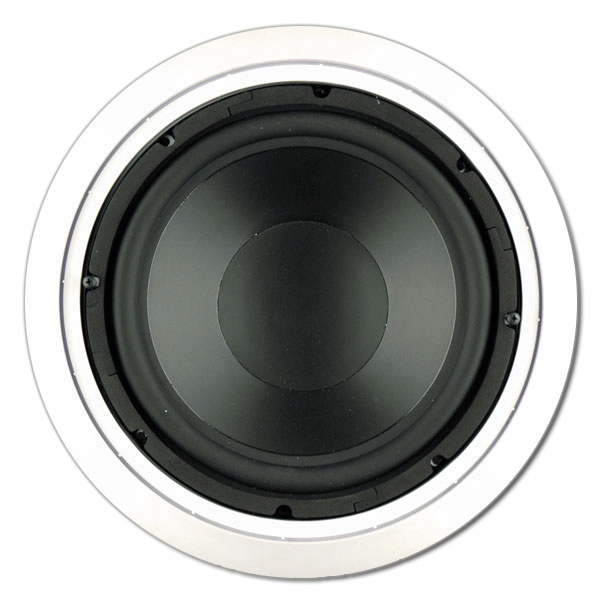

C-10SW
10"
150 Watt In-Ceiling
Powered Subwoofer
Welcome to the great sound of musical Presence throughout your home and authoritative high fidelity surround sound to complete your Home Theater System with sonic dimension that will create a realistic spatial cinematic experience.
All of these design decisions are the result of our
years of experience in delivering excellent sound
quality and superior value to our customers.

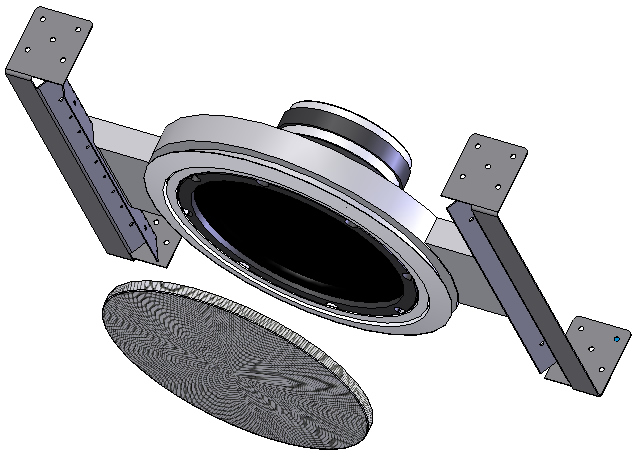

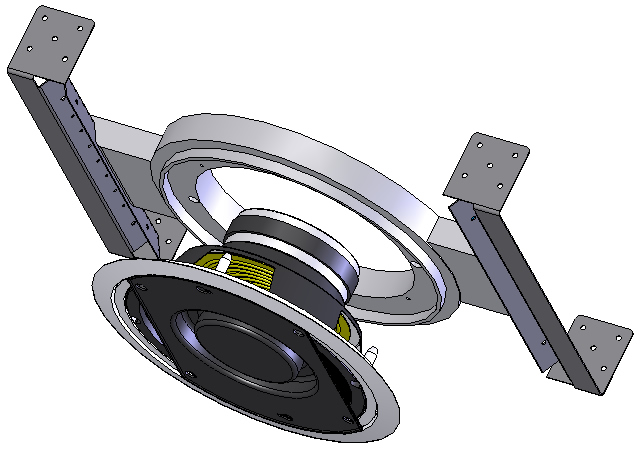

The MB-C10 consists of five separate pieces and two different types of screws. There are two pairs of steel mounting rails supplied. One pair 14.5" long to span 16" OC members and one pair 22.5" long to span 24” OC members. These fasten to the framing members with screws.
The MB-C10 and the C-10SW are sold separately so that they may be purchased and installed during different phases of construction.
For the sake of safety, the system is designed such that the entire assembly is mounted directly to the structure’s framing members. It actually re-enforces the sheetrock by unitizing it, the assembly and the structure’s framing together.
| SPECIFICATIONS |
|
Frequency Response: |
25Hz - 200 Hz (System Response) |
Power Handling: |
150 watts program |
Sensitivity: |
88 dB 1 watt / 1 meter |
Grille: |
Perforated Metal Grille |
Impedance:
|
8 ohms nominal |
Input Impedance: |
Line Level - 20k ohms, Unbalanced
Speaker Level -220 ohms |
Pre-Construction Bracket: |
MB-C10 Required |
FEATURES |
 |
Poly woofer with butyl rubber surrounds |
|
Kapton voice coil formers |
|
Looks identical to the A-8LCRS with grille on |
|
Perforated Metal Grille |
|
Sold and Shipped Individually |
| |
 Compliant |
DIMENSIONS |
Overall Dimensions: |
12-7/8" round |
Cut-Out Dimensions: |
11-1/2" round |
Mounting Depth: |
4-5/8" deep |
Lifetime Limited Warranty |
|
